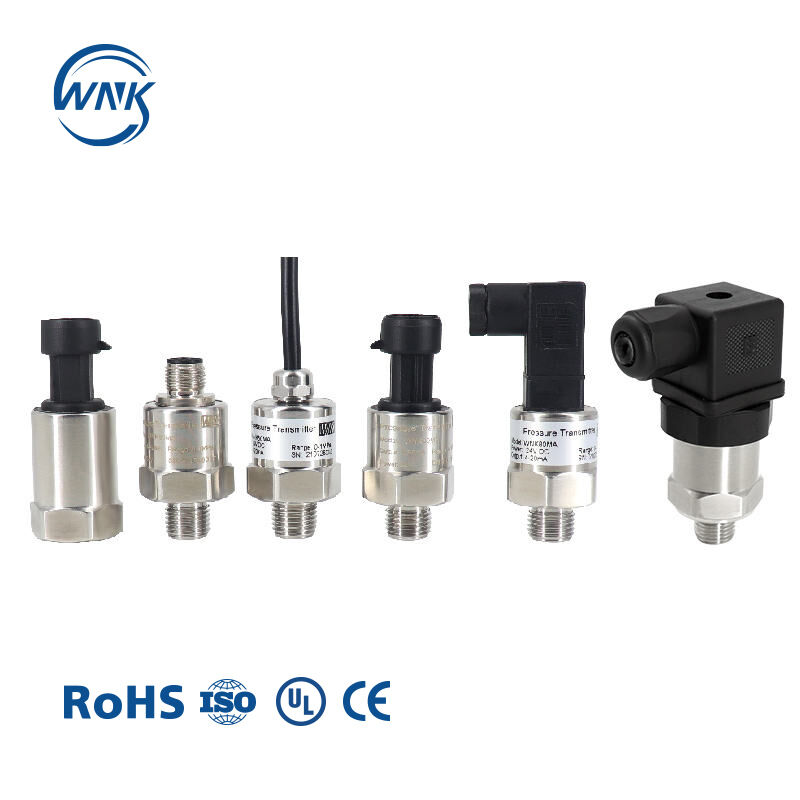

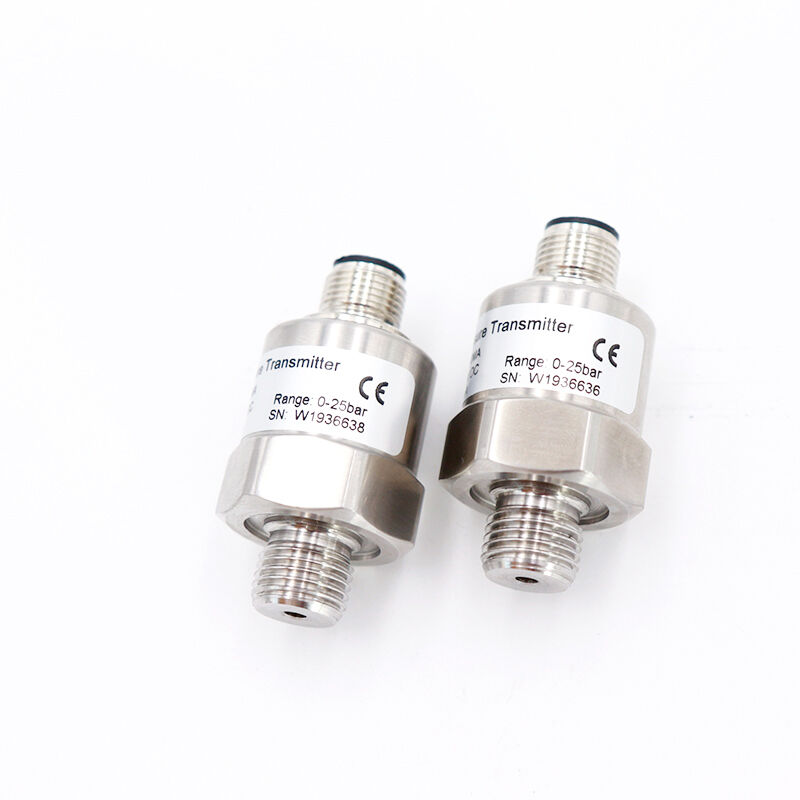

Name: OEM ODM 0.5 Accuracy Industrial Pressure Transducer 150 Psi Pressure Sensor 4-20ma Pressure Transmitter
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Availability: InStock

Nhà > các sản phẩm > Cảm biến áp suất nước điện tử >

OEM ODM 0.5 Accuracy Industrial Pressure Transducer 150 Psi Pressure Sensor 4-20ma Pressure Transmitter

0.5 accuracy industrial pressure transducer

150 psi pressure sensor 4-20ma

electronic water pressure transmitter

Nguồn gốc:

CHIAN

Hàng hiệu:

WNK

Chứng nhận:

CE/ROHS

Số mô hình:

WNK80MA

Liên hệ với chúng tôi

Yêu cầu Đặt giá

Chi tiết sản phẩm

Phương tiện đo lường:

Nước, không khí, khí, hơi nước

Vật liệu nhà ở:

304SS, 316SS

Sự chính xác:

0,5%fs

Phạm vi áp suất:

10kpa, -100kpa ... 70MPa

Ứng dụng:

HVAC làm lạnh không khí nước, ô tô

Tín hiệu đầu ra:

4-20ma, 0,5-4,5V, 0--10V, 3,3V, I2C, rs485

Loại áp suất:

Áp suất đo, áp suất tuyệt đối, áp suất niêm phong

Xếp hạng IP:

IP65

Làm nổi bật:

0.5 accuracy industrial pressure transducer

150 psi pressure sensor 4-20ma

electronic water pressure transmitter

Điều khoản thanh toán và vận chuyển

Sản phẩm liên quan

Băng hình

WNK 14.5 to 30Psi 5V Power Supply 0.5-4.5V Output G1/4 Male Thread Pressure Sensor for Water

Nhận được giá tốt nhất

Băng hình

OEM Hirschmann 316L Bộ biến áp 4-20ma cho tủ lạnh

Nhận được giá tốt nhất

Băng hình

WNK 0,5-4,5V Cảm biến áp suất đồng nhỏ cho điều kiện làm việc khắc nghiệt

Nhận được giá tốt nhất

Băng hình

Cảm biến áp suất nước bằng đồng thau điện tử 0,5-4,5VDC cho khí lỏng

Nhận được giá tốt nhất

Liên hệ với chúng tôi

Liên hệ ngay bây giờ

Mô tả sản phẩm

Hefei Wnk Smart Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production, sales, and service of various advanced and reliable sensors and transmitters. We are committed to providing users with sensor, transmitter, and product technology solutions tailored to different application needs in different fields. Since its establishment in 2004, WNK has provided reliable products and comprehensive services to customers from over 160 countries worldwide. The goal of WNK is to enable more customers to obtain better products and services at lower prices.

Product Description

Applicable media	Liquid, gas and steam
Pressure range	0-60Bar/ -1-700Bar
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS 1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

Water Pressure Sensor for Air Gas

Product Application

What role does the sensor play in the air compressor?

The compressor (compressor), as the heart of the refrigeration system, is a driven fluid machine that lifts low-pressure gas into high-pressure gas. The low-temperature and low-pressure refrigerant gas sucked from the suction pipe is compressed by the rotation of the motor to discharge the high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. Thus, a refrigeration cycle of compression → condensation (exotherm) → expansion → evaporation (heat absorption) is realized. The compressor is divided into piston compressor, screw compressor, centrifugal compressor, linear compressor and so on.

During the work, the actual responsibility of the compressor is to increase the pressure and increase the state of the suction pressure to the state of the exhaust pressure. Compression ratio is a technical expression of pressure difference, which means the absolute pressure on the high pressure side divided by the absolute pressure on the low pressure side. The compression ratio must be calculated using an absolute pressure value. In order to avoid making the calculated value of the compression ratio negative, the absolute pressure must be used instead of the gauge pressure when calculating the pressure ratio. It makes sense to use an absolute pressure value to make the compression ratio calculation a positive value.

Large central air conditioning, refrigeration equipment, in order to achieve automatic control of the machine, the lowest energy consumption ratio, the operation of the equipment needs to be fully monitored, such as temperature, refrigeration medium pressure.
The pressure sensor mainly measures the pressure of the refrigerating medium online on the refrigerating equipment, and transmits the pressure to the control system of the main machine in the form of electrical signals, so as to reflect the compression operation state of the equipment, to realize the automatic control of the product, and to reflect the consumption of the equipment as soon as possible.

OEM ODM 0.5 Accuracy Industrial Pressure Transducer 150 Psi Pressure Sensor 4-20ma Pressure Transmitter 5
