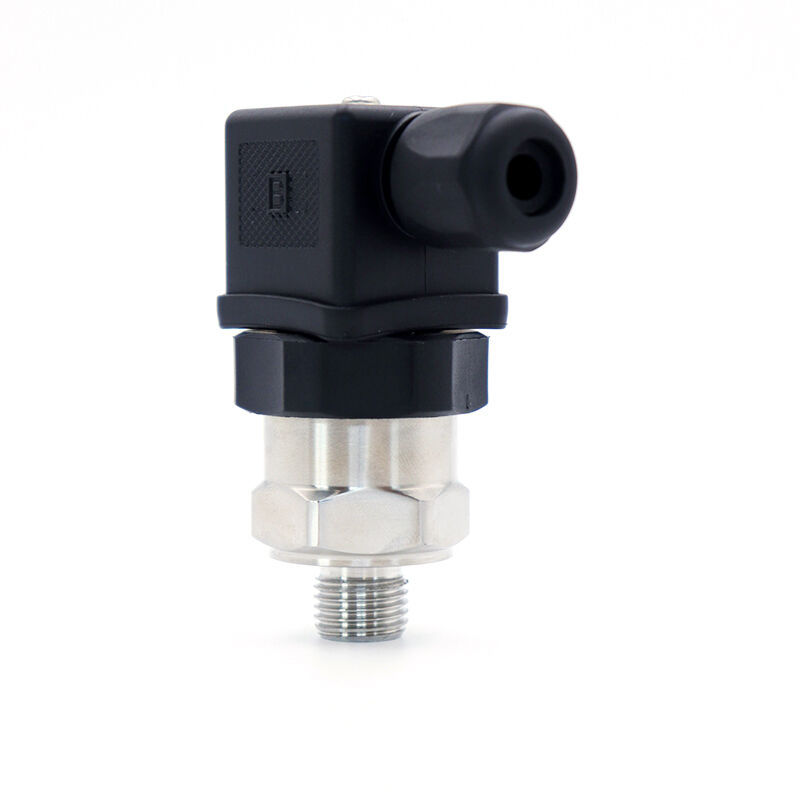

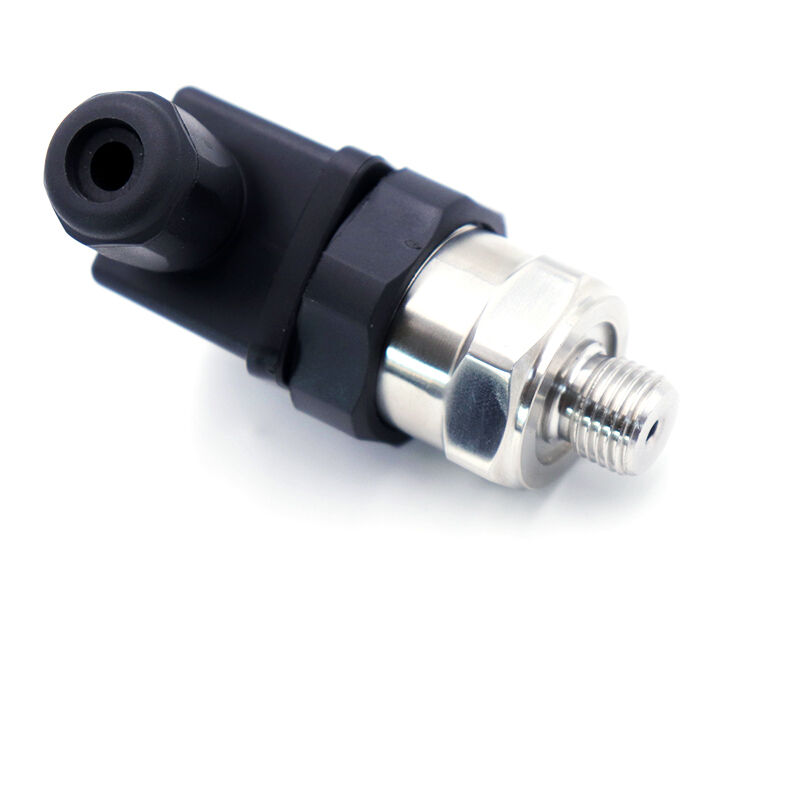

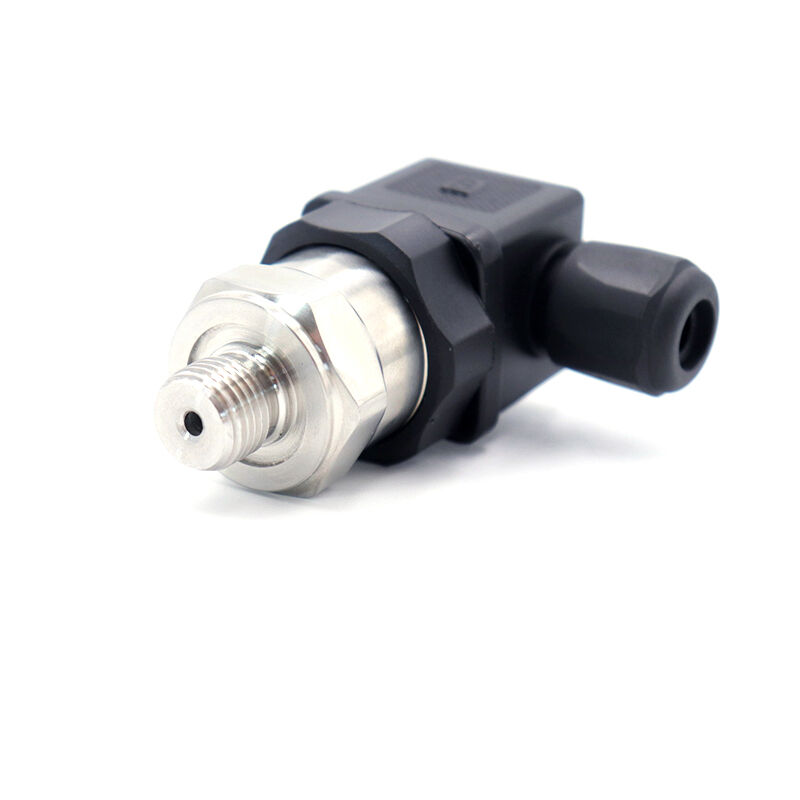

Name: Diffused Silicon Pressure Sensor 0-20 Bar 4-20mA±0.5%FS Accuracy 316L SS IP65
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Availability: InStock

Nhà > các sản phẩm > Cảm biến áp suất IOT >

Diffused Silicon Pressure Sensor 0-20 Bar 4-20mA±0.5%FS Accuracy 316L SS IP65

Diffused Silicon Pressure Sensor 0-20 Bar

316L SS IP65 Pressure Sensor

4-20mA Pressure Sensor ±0.5%FS

Nguồn gốc:

CHIAN

Hàng hiệu:

WNK

Chứng nhận:

CE/ROHS

Số mô hình:

WNK80MA

Liên hệ với chúng tôi

Yêu cầu Đặt giá

Chi tiết sản phẩm

Phương tiện đo lường:

Nước, không khí, khí, hơi nước

Vật liệu nhà ở:

304SS, 316SS

Sự chính xác:

0,5%fs

Phạm vi áp suất:

10kpa, -100kpa ... 70MPa

Ứng dụng:

HVAC làm lạnh không khí nước, ô tô

Tín hiệu đầu ra:

4-20ma, 0,5-4,5V, 0--10V, 3,3V, I2C, rs485

Loại áp suất:

Áp suất đo, áp suất tuyệt đối, áp suất niêm phong

Xếp hạng IP:

IP65

Làm nổi bật:

Diffused Silicon Pressure Sensor 0-20 Bar

316L SS IP65 Pressure Sensor

4-20mA Pressure Sensor ±0.5%FS

Điều khoản thanh toán và vận chuyển

Sản phẩm liên quan

Băng hình

WNK 0-5V 4~20mA 0.5% Gas Water Pressure Sensor OEM Explosion Proof Pressure Transmitter Transducer

Nhận được giá tốt nhất

Băng hình

Cảm biến áp suất dầu WNK 1/8 NPT 0-10 bar 4-20mA 0.5-4.5v Xe tải nước Nhiên liệu Dầu Chất lỏng Phanh Bộ truyền áp suất 150psi

Nhận được giá tốt nhất

Băng hình

WNK 0-5V 4 ~ 20mA 0,5% FS Thép không gỉ Bộ truyền cảm biến áp suất chân không cho khí nước

Nhận được giá tốt nhất

Băng hình

Cảm biến áp suất nước khí WNK 0-5V 4~20mA 0.5% OEM chống cháy nổ Bộ chuyển đổi áp suất

Nhận được giá tốt nhất

Liên hệ với chúng tôi

Liên hệ ngay bây giờ

Mô tả sản phẩm

WNK81MA is silicon oil filled pressure transducer, using imported ASCI signal conditioning chip and diffused silicon oil filled sensor core.It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. With long-term stability and high accuracy, it widely used in the pressure measurement and control fields of HVAC, Auto, Pumping, water treatment and etc.With certification of UL, RoHs, Reach, CE, UKCA, WNK81mA will quickly help you expand your market.

Product Description

Applicable media	Liquid, gas and steam
Pressure range	0-60Bar/ -1-700Bar
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS 1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

Water Pressure Sensor for Air Gas

Product Application

What role does the sensor play in the air compressor?

The compressor (compressor), as the heart of the refrigeration system, is a driven fluid machine that lifts low-pressure gas into high-pressure gas. The low-temperature and low-pressure refrigerant gas sucked from the suction pipe is compressed by the rotation of the motor to discharge the high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. Thus, a refrigeration cycle of compression → condensation (exotherm) → expansion → evaporation (heat absorption) is realized. The compressor is divided into piston compressor, screw compressor, centrifugal compressor, linear compressor and so on.

During the work, the actual responsibility of the compressor is to increase the pressure and increase the state of the suction pressure to the state of the exhaust pressure. Compression ratio is a technical expression of pressure difference, which means the absolute pressure on the high pressure side divided by the absolute pressure on the low pressure side. The compression ratio must be calculated using an absolute pressure value. In order to avoid making the calculated value of the compression ratio negative, the absolute pressure must be used instead of the gauge pressure when calculating the pressure ratio. It makes sense to use an absolute pressure value to make the compression ratio calculation a positive value.

Large central air conditioning, refrigeration equipment, in order to achieve automatic control of the machine, the lowest energy consumption ratio, the operation of the equipment needs to be fully monitored, such as temperature, refrigeration medium pressure.
The pressure sensor mainly measures the pressure of the refrigerating medium online on the refrigerating equipment, and transmits the pressure to the control system of the main machine in the form of electrical signals, so as to reflect the compression operation state of the equipment, to realize the automatic control of the product, and to reflect the consumption of the equipment as soon as possible.

Diffused Silicon Pressure Sensor 0-20 Bar 4-20mA±0.5%FS Accuracy 316L SS IP65 5
