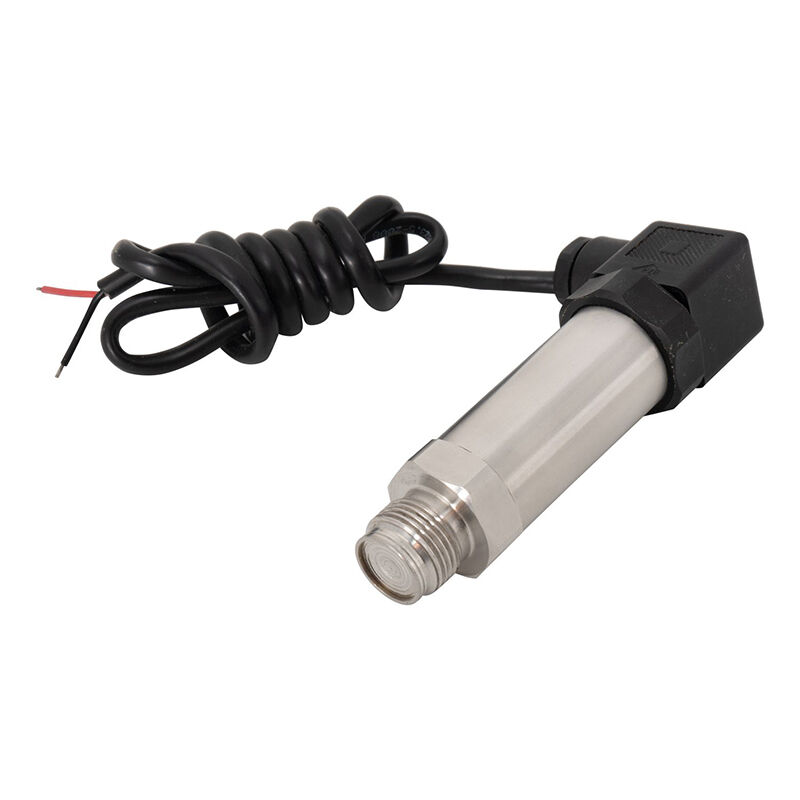

WNK Flat Film Diffusion Silicon Sanitary Pressure Transmitter 4-20mA

WNK Flat Film Diffusion Silicon Sanitary Pressure Transmitter 4-20mA

flat film diffusion pressure transmitter

silicon sanitary pressure transmitter

4-20mA high temperature transmitter

Nguồn gốc:

An Huy, Trung Quốc

Hàng hiệu:

WNK

Số mô hình:

WNK805

Liên hệ với chúng tôi
Yêu cầu Đặt giá
Chi tiết sản phẩm
Bảo hành:
1 năm
Hỗ trợ tùy chỉnh:
OEM, ODM
Sự chính xác:
0,5% FS, 0,5% FS
Tín hiệu đầu ra:
4 ~ 20mA, 1-5V
Phạm vi áp suất:
-100kpa ~ 60 MPa
Nhiệt độ hoạt động:
-20 ~ 85 °C
Nguồn điện:
10,5-55V DC, 10,5-30V DC
Vật liệu nhà ở:
304/316SS
Phương tiện đo lường:
Chất lỏng, khí, hơi nước
Chứng quyền cũ:
ExiaII CT4/CT6, ExiaIICT6
Kiểu:
Máy phát áp suất silicon khuếch tán
Tên sản phẩm:
Bộ truyền áp suất thủy lực đầu ra tín hiệu 2 dây có màn hình LCD
Cảng:
Thượng Hải/Ninh Ba
Làm nổi bật:

flat film diffusion pressure transmitter

,

silicon sanitary pressure transmitter

,

4-20mA high temperature transmitter

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1
Giá bán
$45.00 - $65.00/Pieces
chi tiết đóng gói
Mỗi mảnh thành các thùng riêng lẻ với bảo vệ bọt
Hoặc theo yêu cầu của khách hàng
Khả năng cung cấp
Bộ điều chỉnh áp suất thủy lực 2000 mảnh / mảnh mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
86-551-65369655
Liên hệ ngay bây giờ
Mô tả sản phẩm
Hydraulic  Pressure Transmitter 4-20mA for Sanitary
Specifications
The Series WNK805 Sanitary Pressure Transmitter is designed to meet the applications in food, dairy, beverage and pharmaceutical processing, liquid level control, and sanitary pipelines. The unit is fully sealed to withstand high pressure wash-down in Clean-in-Place and Sterilize-in-Place installations.

Tri-clamps are one of the most common types of pipe connections in the food, beverage, biotech, and pharmaceutical industries. This type of connection consists of a gasket compressed between two tri-clamp ferrules or flanges which are mechanically compressed in place with a clamp. Tri-clamp fittings are available in a variety of sizes, can be constructed from either steel or plastic, and can be either permanent or temporary. The clamp itself also comes in a variety of designs for ease of disassembly and cleaning.

It is therefore essential to select the right type of tri-clamp fitting to ensure the connection operates effectively in a given application. Choosing the right size and type of fitting can help minimize or eliminate contamination, bacterial growth, leaks, and deterioration of the connection material.
High Temperature Sanitary Clamp Flush Type Pressure Transmitter
Applicable media
Liquid, Gas, Steam
Pressure measurment
Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range
0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa
Output signals
Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V, 0-10V DC
Accuracy
0.25%, 0.5%, 1.0%FS
Stability
±0.25% FS/year
Zero drift
50% of full range span.
Max overload
200% of sensor range
Display
LED (Optional)
Housing material
304SS, 316L
Mechanical connection
Clamp,Flush and Flange

Power supply
Non-explosion: 10.5~45V DC
EEX ia:10.5~30 V DC
Ambient temperature
-40~85℃
Process temperature
-40~85℃



Features
- Standard ranges from vacuum to 60Mpa
- Accuracy up to ±0.25%
- 4-20 mA 2-wire output signal, others available
- Highly resistant to pressure spikes and vibration
- Stainless steel case and wetted parts
- Full range of process and electrical connections
- Assemble to diaphragm seals for special applications
- Suitable for gas, liquid, steam pressure measurement
- Intelligent digital circuit with precise temperature characteristic compensation
- Tantalum sensor contact for option for pressure measurement with corrosive media

WNK Flat Film Diffusion Silicon Sanitary Pressure Transmitter 4-20mA 0
WNK Flat Film Diffusion Silicon Sanitary Pressure Transmitter 4-20mA 1
WNK Flat Film Diffusion Silicon Sanitary Pressure Transmitter 4-20mA 2



Product Show



WNK Flat Film Diffusion Silicon Sanitary Pressure Transmitter 4-20mA 3

WNK Flat Film Diffusion Silicon Sanitary Pressure Transmitter 4-20mA 4

WNK Flat Film Diffusion Silicon Sanitary Pressure Transmitter 4-20mA 5

WNK Flat Film Diffusion Silicon Sanitary Pressure Transmitter 4-20mA 6

WNK Flat Film Diffusion Silicon Sanitary Pressure Transmitter 4-20mA 7



WNK Flat Film Diffusion Silicon Sanitary Pressure Transmitter 4-20mA 8WNK Flat Film Diffusion Silicon Sanitary Pressure Transmitter 4-20mA 9
WNK Flat Film Diffusion Silicon Sanitary Pressure Transmitter 4-20mA 10WNK Flat Film Diffusion Silicon Sanitary Pressure Transmitter 4-20mA 11
FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
