WNK Water Pressure Sensor Air Compressor Pressure Transmitter/Fuel Engine Oil Pressure Sensor

WNK Water Pressure Sensor Air Compressor Pressure Transmitter/Fuel Engine Oil Pressure Sensor

water pressure sensor for air compressor

fuel engine oil pressure sensor

IOT pressure transmitter for compressors

Nguồn gốc:

Trung Quốc

Hàng hiệu:

WNK

Chứng nhận:

CE/ROHS

Số mô hình:

WNK80mA

Liên hệ với chúng tôi
Yêu cầu Đặt giá
Chi tiết sản phẩm
phương tiện đo lường:
Nước, không khí, khí đốt, hơi nước
Vật liệu nhà ở:
304SS, 316SS
Độ chính xác:
0,5%FS
Phạm vi áp:
10kpa, -100kpa...70Mpa
Ứng dụng:
Nước làm mát không khí HVAC, ô tô
Tín hiệu đầu ra:
4-20mA, 0,5-4,5V, 0--10V, 3,3V, I2C, RS485
loại áp suất:
Áp suất đo, áp suất tuyệt đối, áp suất niêm phong
Xếp hạng IP:
IP65
Làm nổi bật:

water pressure sensor for air compressor

,

fuel engine oil pressure sensor

,

IOT pressure transmitter for compressors

Điều khoản thanh toán và vận chuyển
Mô tả sản phẩm
WNK Water Pressure Sensor Air Compressor Pressure Transmitter/Fuel Engine Oil Pressure Sensor
Key Attributes
Attribute Value
Measured media Water, Air, Gas, Steam
Housing material 304SS, 316SS
Accuracy 0.5%FS
Pressure range 10kpa, -100kpa...70Mpa
Applications Water Air Refrigerant HVAC, Automobile
Output signal 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485
Pressure Type Gauge Pressure, Absolute Pressure, Sealing Pressure
IP rating IP65
Product Description

WNK81MA is silicon oil filled pressure transducer, using imported ASCI signal conditioning chip and diffused silicon oil filled sensor core. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. With long-term stability and high accuracy, it is widely used in the pressure measurement and control fields of HVAC, Auto, Pumping, water treatment and more. Certified with UL, RoHs, Reach, CE, UKCA, WNK81mA will quickly help you expand your market.

Applications
  • Automobile, Compressor and Refrigeration Industry-Engineering machinery
  • Pressure control and monitor
  • Water treatment system
  • Hydraulic and Pneumatics
  • HAVC and BAS Control
  • Pump, fitness equipment, household appliances
  • Factory Automation
  • Fluid Control and Instrumentation Systems
Technical Specifications
Applicable media Liquid, Gas
Pressure Range 0-60bar/-1-700Bar
Pressure Type Gauge Pressure, Absolute pressure, Sealing pressure
Output 4-20mA/0.5-4.5V/1-5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability) 0.5%F.S./1%FS (Typical)
Power Supply 24VDC/12VDC/5VDC/3.3V
Compensation temperature -20~85ºC
Ambient temperature -40~125ºC
Working temperature -40~125ºC
Temperature drift(zero) ±0.15% F.S. (-20~85ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard, M12, DIN43650, Cable outlet
Mechanical connection G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material 304 stainless steel (inner core is 316 stainless steel)
Protection IP65
Product Images

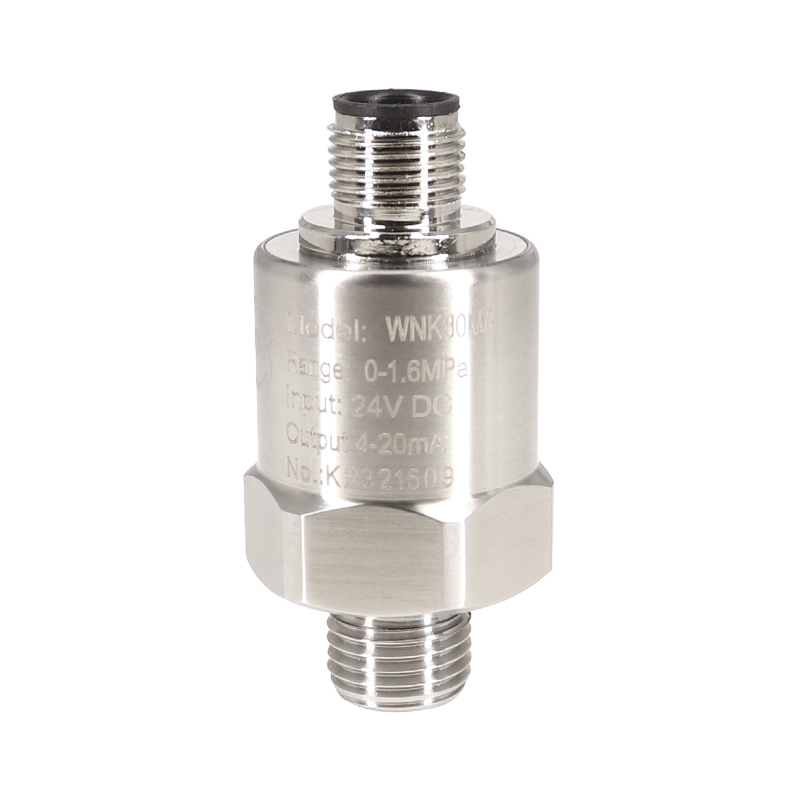

WNK Water Pressure Sensor Air Compressor Pressure Transmitter/Fuel Engine Oil Pressure Sensor 0

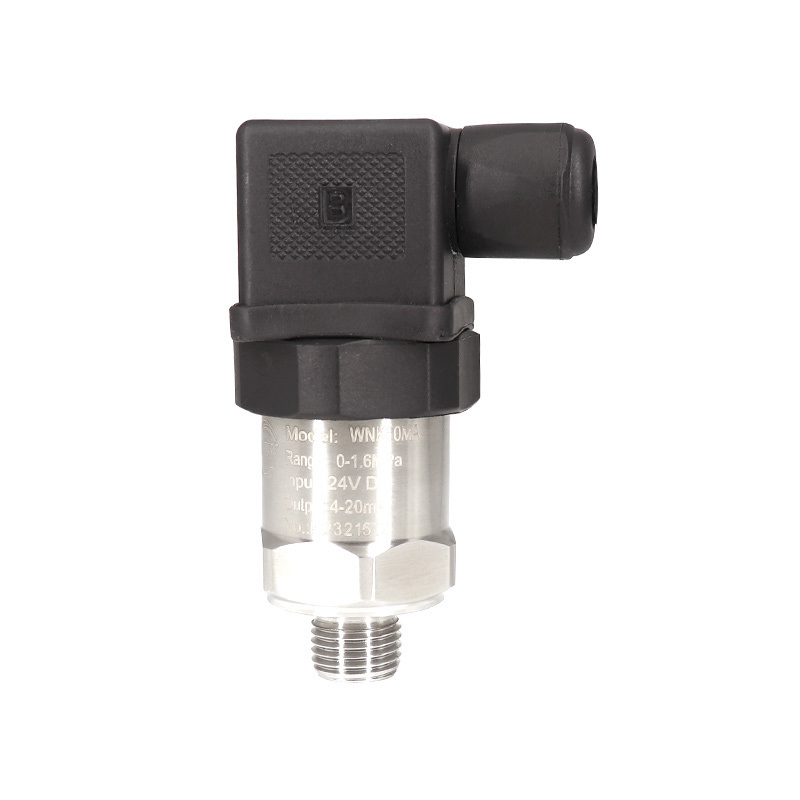

WNK Water Pressure Sensor Air Compressor Pressure Transmitter/Fuel Engine Oil Pressure Sensor 1
Electrical Connection
WNK Water Pressure Sensor Air Compressor Pressure Transmitter/Fuel Engine Oil Pressure Sensor 2
WNK Water Pressure Sensor Air Compressor Pressure Transmitter/Fuel Engine Oil Pressure Sensor 3
Customer Feedback
WNK Water Pressure Sensor Air Compressor Pressure Transmitter/Fuel Engine Oil Pressure Sensor 4
